Web development environment setup on MS Windows.


3. MySQL database server.
  3.1. MySQL distributions.

MySQL is without any doubt the most used database server on the Web. Beside the commercial editions (standard, enterprise, cluster...) there is a completely free MySQL community edition. On their site, they describe this product as follows: "MySQL Community Edition is the freely downloadable version of the world's most popular open source database. It is available under the GPL license and is supported by a huge and active community of open source developers. Available on over 20 platforms and operating systems including Linux, Unix, Mac and Windows." MySQL is developed, distributed, and supported by Oracle Corporation.
To work with databases, you not only need a database server, but also a client, connectors and administration tools. The MySQL community editon may be downloaded as an all-in-one binary distribution, called MySQL Installer, including the following:
  • MySQL Server and clients
  • MySQL Connectors
  • MySQL Workbench and sample models
  • MySQL Notifier
  • Sample Databases
  • MySQL for Excel
  • MySQL for Visual Studio
  • Documentation
Note: MySQL Installer itself is 32 bit, but may be used to install both 32 bit and 64 bit binaries.
  3.2. MySQL Workbench.

"MySQL Workbench is a unified visual tool for database architects, developers, and DBAs. MySQL Workbench provides data modeling, SQL development, and comprehensive administration tools for server configuration, user administration, backup, and much more. MySQL Workbench is available on Windows, Linux and Mac OS X."
The paragraph above is how the MySQL developers themselves describe MySQL Workbench on their website. It's not mandatory to have MySQL Workbench installed to work with MySQL databses; you can need other applications, such as phpMyAdmin (cf. part 4 of this tutorial) instead. But there's no real reason not to install it: first there is a community edition, that is entirely free and second, it is included in the MySQL Installer package described above.
MySQL Workbench for Windows prerequisites.
To be able to install and run MySQL Workbench (recent version is 6.3) on Windows your system needs to have the libraries listed below installed. On Windows 10 (and I guess on Windows 8.1 with all updates done, too) this should be the case. If it's not the case, MySQL installer will issue a message; use the links below to download the libraries from Microsoft, install them and retry installing MySQL.
  3.3. Installing MySQL.

The following text concerns the installation of the MySQL community edition database server (version 5.7.22 64bit, MySQL "all-in-one" Installer package) on MS Windows (Windows 10 Pro). On Linux platforms, MySQL is often installed by default, or may be selected during the OS installation.
Double-click the setup file (actually mysql-installer-community-5.7.22.1.msi, 363MB) to start the installation process. After the license agreement, choose an installation type. "Developer Default" will suit in most cases.
MySQL installation: Installation type
The installer checks requirements and you probably will have some failures. This only matters if you need the components mentionned. For some of them (as MySQL for Excel), you may use the "Execute" button in order to make the installer try to download and install the component; in other cases , marked as "manual" (as the Python connector), you have to do the installation manually. In my case, as none of them needed, I just clicked "Next" to proceed.
MySQL installation: Requirements failures
The package components, being part of the installation type chosen or selected by yourself if you choose "Custom" will now be installed. Normally, this will be smooth and without any problems.
MySQL installation: Installation components
When installation is complete, the Installer proceeds with the MySQL server configuration; the default options suit in most cases. Be sure not to forget your MySQL root user's password (I suppose that most Linux users know that this one is not identical with their system administartor, also called root), otherwise you will not be able to access your databases nor to create new ones! If you intend connecting to MySQL using a named pipe, you have to enable this feature here. If you intend to run several MySQL servers, you will have to change service name and port; you also have to use different server ids (set in "Advanced Options"). In "Advanced Options", you may also enable special logfiles (mostly used for debugging purposes). Configure the document store, if you need it (not enabled by defaut). The only thing I did change, is to set the MySQL service not to start automatically with the start of Windows.
MySQL installation: Server configuration [1]   MySQL installation: Server configuration [2]   MySQL installation: Server configuration [3]
After the configuration of the MySQL server, it's the turn of the MySQL router and the sample databases. During this step the Installer has to connect to your newly installed database server to create the samples. You will have to enter the MySQL root user's password. If this step succeeds, you should be able to run your MySQL server without any problems...
MySQL installation: Connecting to the server
Note: To uninstall a component or to completely remove the MySQL package, run MySQL Installer and choose what you want to remove. Backing up your databases, before doing so, wouldn't be a bad idea!. There are some files left in "C:\Program Data" (you must select to view hidden folders to see this one in File Manager): just look for a folder called MySQL and delete it.
  3.4. Running the MySQL database server.

I sometimes experienced problems when trying to start/stop the MySQL server from within MySQL Workbench or to use my databases when connecting with MySQL Workbench before the server was started. Simple work-around: There is an application, called MySQL notifier, that similar to ApacheMonitor with Apache, allows to start/stop, monitor and mangage one ore more MySQL server instances. Using this program (or the Windows "Services" feature) to start the service, then launching MySQL Workbench always worked well for me. Click on the gray area, referencing the MYSQL57 service, running on localhost. An input box pops up, asking for the root password; enter it and push the "OK" button. MySQL Workbench opens and you have access to your databases, as well as the server management features.
MySQL Workbench: Connecting to the MySQL server   MySQL Workbench: Connecting to the MySQL server
  3.5. MySQL schemas, users and privileges.

A schema may be viewed as a database, privileges may be viewed as the permissions a given user has when accessing the MySQl server. Accessing the MySQL server from a given place, more exactly. If you create a new MySQL account, you not only define a user name and password, but also the computer (IP address) or network (IP address range) from where this user has the right to connect. In most cases, this will be "localhost"; to allow a user to connect from anywhre, enter "%".

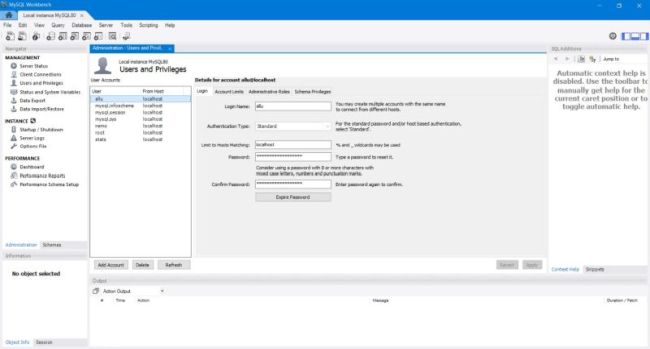

MySQL Workbench: Creating a new user
Global privileges are the permissions a user has to access all databases on the server. There are predefined "sets" of global privileges grouped as so-called roles: DBA, BackupAdmin... A custom role can be any combination of available privileges. On the other side there are databse privileges, that apply to a given database or some given databases only. The first screenshot below shows how I grant the global privileges "Show databases", "Select" and "Show view" to the newly created user "allu"; thereby, he gets the permission to view what databases exist on this server and to view (read) the data stored in any of these databases. The other 2 screenshots show how I give allu the permission to insert, update and delete records and execute stored procedure in the 'world' database. What finally means: allu may raed everything, may manipulate data of the 'world' database as he wants, but has no permission to view for example the content of the 'sys' database, nor to create, alter, delete databases, tables, indexes, etc (I always use "root" to do this).
MySQL Workbench: Granting global privileges   MySQL Workbench: Granting database privileges [1]   MySQL Workbench: Granting database privileges [2]
In MySQL Workbench, the schemas defined on the server are listed in the lower part of the left pane. Moving the mouse over a schema name shows two icons: an 'i' for information and a screwdriver for configuring. If you click the 'i' icon corresponding to the "world" schema, a summary of the "world" database is displayed. In the last pane of this display (called "Grants"), you can see all users who actually have privileges on this particular database. Note, that before taking the screenshot below, I created another user, called "nemo", with no global privileges and "Select" and "Show view" privileges for "world".
MySQL Workbench: Grants for a given database
  3.6. Querying the database using MySQL Workbench.

When "opening" a database in the "Schemas" pane in MySQL Workbench, you can see its tables, views and stored procedures. Moving the mouse over a table name, 3 icons are displayed: a 'i' for information, a screwdriver for configuration (i.e. modifying the table structure) and a table for showing its content; in fact, clicking this icon for the "city" table of the "world" database is nothing else than executing the query:
    SELECT * FROM world.city;
that is the SQL statement for displaying all records of this table.
MySQL Workbench: Displaying table contents
In the SQL tab of the main Workbench window, you can enter any SQL statement. Terminate it with ";" and click the "Execute" icon to run it. This way, you can use MySQL Workbench to manage the database (creating itself or its tables, granting privileges...), the database's records (insert, update or delete them) or displaying records based on any criteria allowed by the Structured Query Language (SQL). A simple example (the same as used in the php, Perl and Free Pascal programs below): Displaying the number of cities in the "world.city" table:
    SELECT COUNT(*) FROM city;
In this example, I omit the name of the database. This only works if you connected to a specific databse before. Otherwise, MySQL can't be sure what table you mean and you get an error as the one in the "Messages" window in the screenshot below. To connect to a given database in MySQL Workbench, just double-click it; when its name becomes highlighted (bold), the connection is done and you may reference the database objects without explicitely writing its name.
MySQL Workbench: Displaying records count
  3.7. Accessing MySQL with PHP scripts.

Access to a MySQL database form a PHP script is done by using the MySQL-specific PHP extension mysqli / pdo_mysql (cf. part 2 of this tutorial). Which one of these extensions you use, is up to you. The usage syntax is quite different; with both extensions enabled, you may choose the one that suits you best.
mysql.php is a simple script to test MySQL access, using the mysqli extension and intended to do the same as we did in Workbench before: Displaying the number of records in the world.city table. 3 steps to do so:
  • Connecting to the "world" database (doing so with the "nemo" user created above).
  • Running the query (SQL statement, just as above).
  • Retrieving the query result (and display it).
Here's the code of mysql.php:
<html>
    <head>
        <title>PHP-MySQL test</title>
    </head>
    <body><p>
        <php
            $host= '127.0.0.1'; $database='world'; $user = 'nemo'; $passwd = 'nemo';
            $mysqli = new mysqli($host, $user, $passwd, $database);
            $sql = "SELECT count(*) AS _count FROM city";
            $uresult = $mysqli->query($sql, MYSQLI_USE_RESULT);
            $count = 0;
            if ($uresult) {
                $row = $uresult->fetch_assoc(); $count = $row['_count'];
            }
            echo "Number of cities in database 'world' = $count";
        ?>
    </p></body>
</html>
Placing the script in the /php server directory and entering "localhost/php/mysql.php" in the browser address field will result in one of the screenshots below: the first one, when the MySQL server is stopped, the second one, when it is running.
Accessing MySQL with PHP [1]   Accessing MySQL with PHP [2]
  3.8. Accessing MySQL with Perl scripts.

A description of how to access a MySQL server from Perl (including a simple test script doing exactly the same as we did with PHP here) is given in part 5 of this tutorial.
  3.9. Accessing MySQL with Free Pascal applications.

To connect to a MySQL database with Free Pascal applications using a TMySQLxyConnection or, alternatively, using a TODBCConnection object, please have a look at Connecting to a MySQL database using Lazarus / Free Pascal in The Lazarus / Free Pascal Project section of my site.
